Actuator Position Sensor
Actuator Position Sensor D-MP□
![]() | ・Actuator stroke position is output with an analog signal. ・Repeatability: 0.1 mm ・Analog output ・4 measurement ranges ・Switch output ・IO-Link compatible |
Series | Measuring range |
---|---|
D-MP025 | 25mm±1mm |
D-MP050 | 50mm±1mm |
D-MP100 | 100mm±1mm |
D-MP200 | 200mm±1mm |

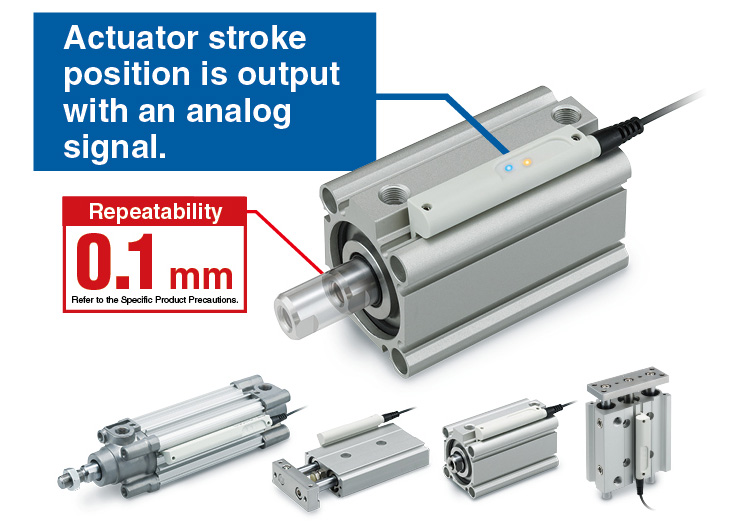

■Actuator stroke position is output with an analog signal.

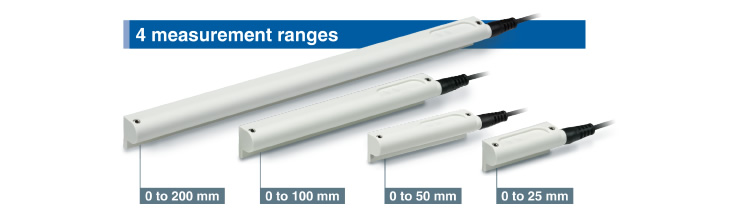

■4 measurement ranges

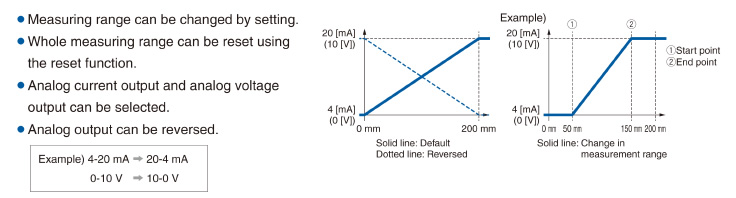

■Analog output function

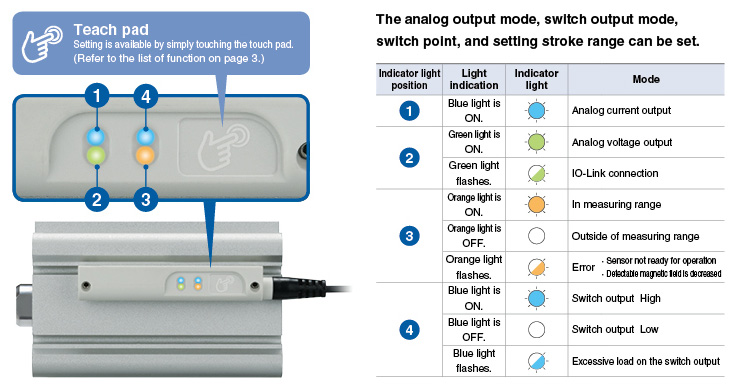

■Operation display

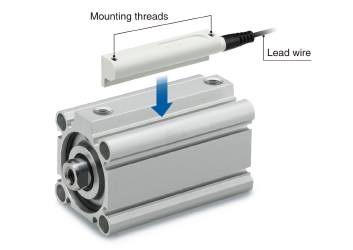

■Direct mounting is possible.
Can be mounted directly into the auto switch mounting groove on the cylinder

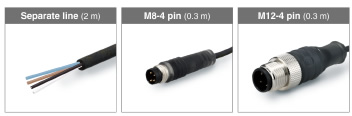

■Lead wire connection

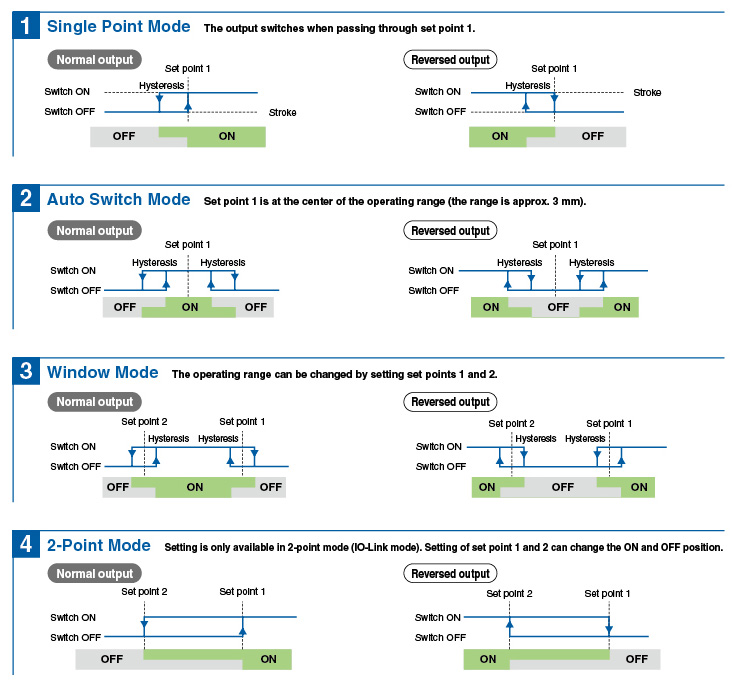

■4 switch modes can be selected for the switch output.

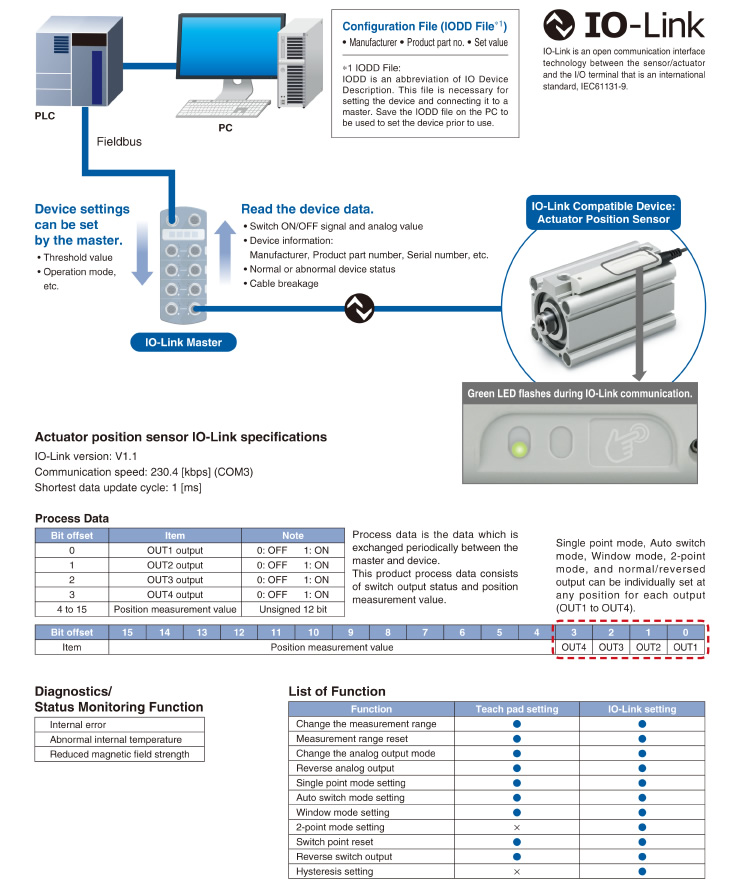

■IO-Link compatible
Visualization of operation/equipment status/Remote monitoring and control by communication




Tags: Actuator Position Sensor
